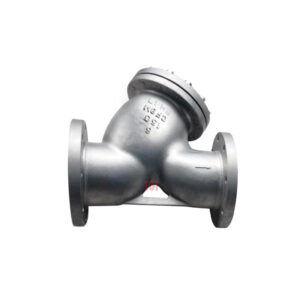

CF8M Y Strainer
CF8M Y strainers are standard with drain connections and pipe plugs. TOT Valves CF8M grade 316 stainless steel conforming to ASTM A 351.
TOT CF8M Y strainers are field installed with connections and drain valves, allowing for easy cleaning of the strainer screen while your piping system is still in operation.
If your piping system requires such a Y-Strainer, contact us today to get a very competitive ex-factory price.
Description
CF8M Y strainers are an indispensable filtering device in your pipeline system for conveying media.
We manufacture SS Y strainers that you can install on the inlet of pressure reducing valves, pressure relief valves, water level valves or other equipment to remove impurities in the media to protect the normal use of control valves and equipment on your pipeline.
When the drain valve is opened while your system is under pressure, the debris particles trapped in the filter will be “blown out” through the Y type filter connector, helping to reduce the number of shutdowns of your system due to lack of maintenance and cleaning.
TOT Y strainers have advanced structure, low resistance, and convenient drainage. Y strainers can convey water, oil, gas and other media for you.
The filter device in the CF8M Y strainers we provide has a water mesh of 18~30 mesh, a ventilation mesh of 10~100 mesh, and an oil mesh of 100~480 mesh.
*Note: The mesh specification indicates the number of holes per square centimeter. The number of holes varies due to different pore sizes.
| Parts Name | CF8M Y Strainer |
| Size | 1/2″ to 8″ |
| Pressure | Class 150 / Class 300 |
| Standard Screen / Basket | Mesh 60 |
| Optional Mesh | 20/40/60/80/100 |
| Construction | Bolt Cover |
| Connection | FF |
| Body Material | CF8M |
| Cover | F316 |
| Design & Manufacture | ASME B16.34 |
| End to End | ASME B16.10 |
| End Connection | ASME B16.5 |
| Inspection | API 6D, API 598 |
| Temperature Range | -29℃~+538℃ |
| Medium | Oil, Water, Gas |
Main External and Connection Dimension

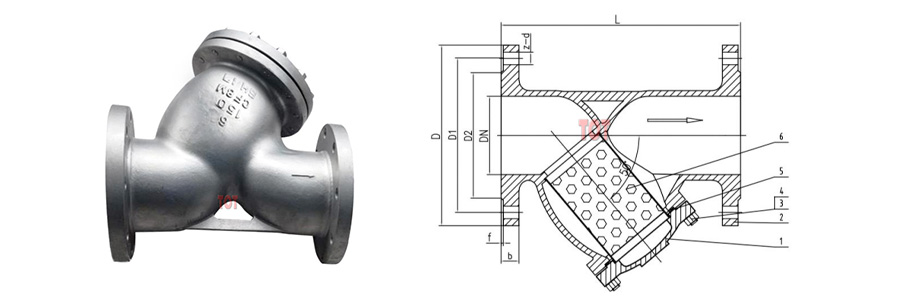

TOT Valve can provide you with CF8M Y strainers of various dimension and models.
We list some CF8M Y strainers dimensions, can be used for your reference. If you do not have the CF8M Y strainers size you need, you can contact us immediately. Our professional sales manager will contact you and can provide you with exclusive ODM and OEM services.
CF8M Y Strainers Class 150
| Size | L | D | D1 | D2 | b | f | z-Φd |
|---|---|---|---|---|---|---|---|
| 1/2″ | 5.12 | 3.54 | 2.37 | 1.37 | 0.39 | 0.06 | 4-Φ0.63 |
| 3/4″ | 5.51 | 3.94 | 2.75 | 1.7 | 0.43 | 0.06 | 4-Φ0.63 |
| 1″ | 5.91 | 4.33 | 3.13 | 2 | 0.47 | 0.06 | 4-Φ0.63 |
| 1-1/4″ | 6.69 | 4.53 | 3.5 | 2.5 | 0.51 | 0.06 | 4-Φ0.63 |
| 1-1/2″ | 7.87 | 4.92 | 3.87 | 2.87 | 0.59 | 0.06 | 4-Φ0.63 |
| 2″ | 8.66 | 5.91 | 4.75 | 3.63 | 0.63 | 0.06 | 4-Φ0.75 |
| 2-1/2″ | 9.92 | 7.09 | 5.5 | 4.13 | 0.71 | 0.06 | 4-Φ0.75 |
| 3″ | 11.02 | 7.48 | 6 | 5 | 0.75 | 0.06 | 4-Φ0.75 |
| 4″ | 12.6 | 9.06 | 7.5 | 6.19 | 0.75 | 0.06 | 8-Φ0.75 |
| 5″ | 13.78 | 10.04 | 8.5 | 7.31 | 0.95 | 0.06 | 8-Φ0.87 |
| 6″ | 15.75 | 11.02 | 9.5 | 8.5 | 1.02 | 0.06 | 8-Φ0.87 |
| 8″ | 19.09 | 13.58 | 11.75 | 10.63 | 1.14 | 0.06 | 8-Φ0.87 |
CF8M Y Strainers Class 300
| Size | L | D | D1 | D2 | b | f | z-Φd |
|---|---|---|---|---|---|---|---|
| 1/2″ | 5.12 | 3.74 | 2.63 | 1.37 | 0.59 | 0.06 | 4-Φ0.63 |
| 3/4″ | 5.91 | 4.53 | 3.25 | 1.69 | 0.63 | 0.06 | 4-Φ0.75 |
| 1″ | 6.3 | 4.92 | 3.5 | 2 | 0.71 | 0.06 | 4-Φ0.75 |
| 1-1/4″ | 6.69 | 5.32 | 3.87 | 2.5 | 0.75 | 0.06 | 4-Φ0.75 |
| 1-1/2″ | 7.87 | 6.1 | 4.5 | 2.87 | 0.83 | 0.06 | 4-Φ0.87 |
| 2″ | 8.66 | 6.5 | 5 | 3.63 | 0.91 | 0.06 | 8-Φ0.75 |
| 2-1/2″ | 10.24 | 7.48 | 5.87 | 4.13 | 1.02 | 0.06 | 8-Φ0.87 |
| 3″ | 11.02 | 8.27 | 6.63 | 5 | 1.14 | 0.06 | 8-Φ0.87 |
| 4″ | 11.81 | 10.04 | 7.87 | 6.19 | 1.26 | 0.06 | 8-Φ0.87 |
| 5″ | 13.78 | 11.02 | 9.25 | 7.31 | 1.38 | 0.06 | 8-Φ0.87 |
| 6″ | 15.16 | 12.6 | 10.63 | 8.5 | 1.46 | 0.06 | 12-Φ0.87 |
| 8″ | 19.09 | 14.96 | 13 | 10.63 | 1.65 | 0.06 | 12-Φ0.98 |
* We are not just providing simple quotes but experts in selection, calculation, and drawing.
