GOST Gate Valve

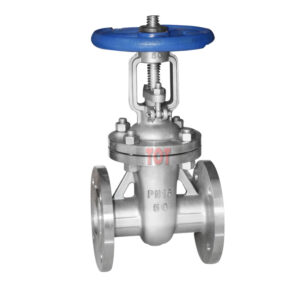

This GOST gate valve from TOT is a type of stainless steel gate valve, which is simple in design and complies with Russian standards. The GOST gate valve consists of a valve body, a valve cover, a valve stem, a valve seat ring, a handwheel and a gate. The valve stem that connects the handwheel and the valve disc is responsible for driving the valve disc to the correct position.

We can provide you with manual, bevel gear transmission and electric stainless steel gate valves. Contact us now to get the most favorable ex-factory price.

Description

When the valve is open, the gate moves in the bonnet to allow full flow. When the gate valve is closed, the gate moves down into the seat, achieving a positive seal.

You can usually use this valve to stop or start flow, because they are not designed for throttling, the valve only operates in the fully open position or the fully closed position. We can also provide you with a two-way gate valve, allowing it to be used in both directions.

Flanged stainless steel gate valves are suitable for ANSIClass150~900, PN2.0~16.0MPa, working temperature -29~425℃ (carbon steel) and -40~500°C (stainless steel) on various pipelines, used to cut off or connect the media in the pipeline.

You can use our stainless steel gate valves for a variety of media fluids such as water, steam, oil, nitric acid, acetic acid, strong oxidizing media and urea.

GOST Gate Valve Execution Standard

Design Standard	Structure Length	Flanges Connection	Welding Connection	Testing Standard	Pressure-Temp
GOST 5762-2002	GOST 3706-93	GOST 12815-80	GB/T 12224	ISO5208 GOST 356-80	GB/T 12224

Structural Characteristics

– Excellent flow and minimized friction loss

– Product design and manufacturing meet the requirements of GOST advanced standards, reliable sealing and excellent performance

– Compact and reasonable structural design, beautiful appearance

– Adopt wedge-type elastic gate structure, medium and large diameters are equipped with rolling bearings, easy to open and close

– A full range of valve body materials, packing and gaskets are reasonably selected according to actual working conditions or user requirements, Applicable to various pressure, temperature and medium working conditions

– Select a variety of GOST piping flange standards and flange sealing surface types to meet various engineering needs and user requirements

– Excellent performance in humid or corrosive environments

Performance Specification

PN(MPa)	Shell Test(MPa)	Seal Test(MPa)	Top Seal Test(MPa)	Air Seal Test(MPa)
1.6	2.4	1.76	1.76	0.6
2.5	3.8	2.75	2.75
4.0	6.0	4.4	4.4
6.3	9.5	6.9	6.9
10.0	15.0	11.0	11.0
16.0	24.0	17.6	17.6
20.0	30.0	22.0	22.0

Main Components Material

The TOT Valve body are cast or forged from a variety of high-quality materials, including stainless steel, cast steel and alloy steel, depending on the requirements of your gate valve application scenario.

The main materials of packing are PTFE or Graphite.

If you are interested in our gate valve materials, you can contact us by leaving your information in the form on the right.

Body Bonnet	Stem	Seat	Sealing Shim	Packing	Working Temperature	Suitable Medium
25L	2Cr13 F304 F316	13Cr Stellite F304 F316	304+Flexible Graphite 316+Flexible 08 Soft Steel	Flexible Graphite PTFE	-196°C~565°℃	Water Steam Oil Gas Nitric Acid Acetic Acid
20GL
LC1
CF8
12Cr18Ni9Ti
CF8M
0Cr18Ni12Mo2Ti

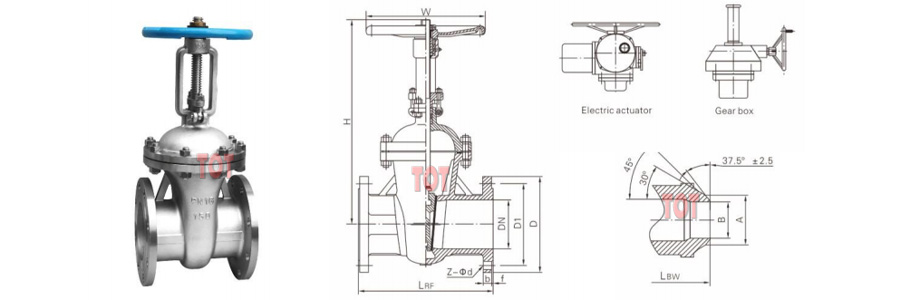

Main External and Connection Dimension

TOT Valve can provide you with GOST Gate Valve of various sizes and models. We list all existing GOST Gate Valve Sizes.

The data we provide can be used for your reference. If you do not have the gate valve size you need, you can contact us immediately. Our professional sales manager will contact you and can provide you with exclusive ODM and OEM services.

PN16 GOST Gate Valve

DN	LRF	LBW	D	D1	b	Z-Φd	A	B	H	W
50	180	180	160	125	16	4-Φ18	60	50	355	200
65	190	190	180	145	20	4-Φ18	75	63	376	200
80	210	210	195	160	20	8-Φ19	91	78	435	280
100	230	230	215	180	20	8-Φ18	117	102	502	300
125	255	255	245	210	22	8-Φ18	144	128	615	320
150	280	280	260	240	22	8-Φ22	172	154	675	360
200	330	330	335	295	24	12-Φ22	223	203	820	450
250	450	450	405	355	26	12-Φ26	278	255	970	450
300	500	500	460	410	28	12-Φ26	329	305	1145	500
350	550	550	520	470	30	16-Φ26	362	337	1280	550
400	600	600	580	525	32	20-Φ30	413	387	1451	600
450	650	650	640	585	40	20-Φ30	464	438	1545	650
500	700	700	710	650	44	20-Φ33	516	489	1678	700
600	800	800	840	710	54	24-Φ36	591	561	1875	800
700	900	900	910	840	60	24-Φ36	721	695	2085	900
800	1000	1000	1020	950	60	24-Φ39	825	745	2405	950
900	1100	1100	1125	1050	64	24-Φ42	927	899	2950	1000
1000	1242	1242	1255	1170	46	28-Φ42	1000	1000	3244	1000

PN25 GOST Gate Valve

DN	L	D	D1	b	Z-Φd	A	B	H	W
50	250	160	125	20	4-Φ18	60	52	355	200
65	265	180	145	22	8-Φ18	75	63	376	200
80	280	195	160	24	8-Φ18	91	78	435	280
100	300	230	190	24	8-Φ22	117	102	502	300
125	325	270	220	26	8-Φ26	144	128	615	320
150	350	300	250	30	8-Φ26	172	154	675	360
200	400	360	310	34	12-Φ26	223	203	820	400
250	450	425	370	36	12-Φ26	278	255	970	450
300	500	485	430	36	16-Φ30	329	305	1145	500
350	550	550	490	38	16-Φ33	362	337	1280	550
400	600	610	550	40	16-Φ36	413	387	1451	600
450	650	670	600	46	20-Φ36	464	438	1545	650
500	700	730	660	48	20-Φ39	516	489	1678	700
600	800	840	770	58	24-Φ42	591	561	1875	800
700	900	960	875	60	24-Φ42	721	695	2085	900
800	1000	1085	990	54	24-Φ48	825	797	2405	950
900	1100	1185	1090	58	24-Φ48	927	899	2950	1000
1000	1242	1320	1210	62	28-Φ55	–	–	3244	1000
