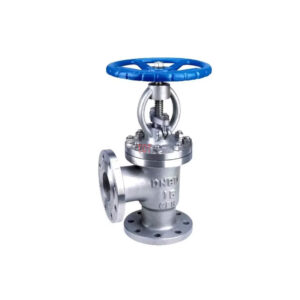

Stainless Steel Angle Globe Valve

Reliable 90-Degree Flow Control for Corrosive and High-Temperature Environments

When you need precise, long-lasting control in systems dealing with steam, aggressive media, or corrosive fluids, a standard valve simply won’t do. Our stainless steel angle globe valve, also known as an angle type globe valve or angular globe valve, offers dependable shut-off and throttling performance with the added benefit of a 90-degree flow path. Designed for high reliability, it’s your go-to solution for tight spaces and demanding industrial conditions.

Minimum MOQ, but we guarantee that we can deliver tested and qualified products on time.

Description

This angle globe control valve features a robust stainless steel body (available in CF8, CF8M, or CF3M) and an angle pattern design that allows fluid to change direction with minimal pressure loss.

Compared to traditional in-line globe valves, the 90-degree globe valve layout simplifies piping layouts and reduces the number of required fittings saving you installation time and cost.

Whether you’re handling hot condensate, corrosive chemicals, or seawater, this valve delivers smooth operation and long service life, even under high-pressure and high-temperature conditions.

TOT Valve as a professional angle globe valve manufacturers and supplier in China. We will help you customize or select the appropriate angle globe valve according to your pressure, media and installation requirements.

Stainless Steel Angle Globe Valve Features

Corrosion-Resistant Construction: Ideal for chemical, marine, and high-purity systems.
Space-Saving Angle Pattern Design: Reduces footprint and installation complexity.
Excellent Flow Regulation: Globe-style seat offers linear flow control characteristics.
Versatile Connection Options: Available with flanged, threaded (NPT), or socket weld ends.
Manual or Automated Operation: Compatible with handwheel, gear operator, or pneumatic actuator.
Leak-Tight Shutoff: Choose from metal-to-metal or soft-seated options depending on your sealing needs.
Customizable Trim: Valve seat and stem materials can be adapted to your media.

Main Technical Parameters & Performance

Parameter	Value/Option
Valve Type	Angle Globe Valve / 90° Globe Valve
Size Range	1/2″ – 24″ (DN15 – DN600)
Body Material	CF8 / CF8M / CF3M (Stainless Steel)
Seat Options	Metal Seated / PTFE / RPTFE
Pressure Rating	ANSI 150 / ANSI 300 / ANSI 600 / PN16 – PN40
Temperature Range	-29°C to +425°C (dependent on seat & stem)
End Connections	RF Flanged / NPT Threaded / Socket Weld
Operation	Manual (Handwheel), Gear, or Pneumatic Actuator
Flow Direction	90-degree turn flow (Inlet horizontal, outlet vertical or vice versa)

Main Components and Materials

Component	Material Options
Body	CF8 / CF8M / CF3M
Bonnet	Same as body
Stem	SS 304 / SS 316 / F6a
Disc / Plug	SS + Stellite / SS + PTFE
Seat Ring	Integral / Renewable (SS or Alloy)
Gasket	Spiral Wound SS + Graphite
Packing	Graphite / PTFE / PTFE-Graphite
Handwheel	Cast Iron / Ductile Iron

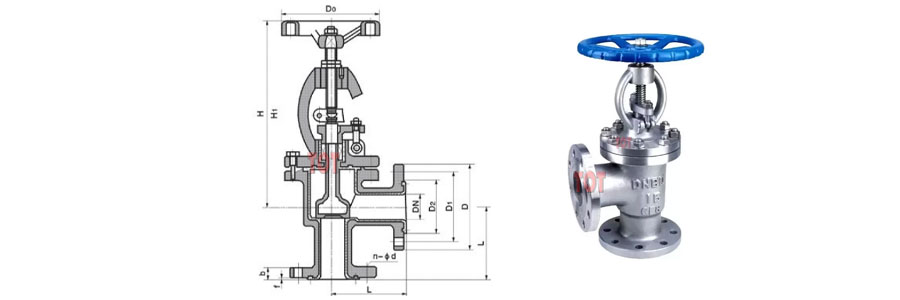

Angle Globe Valve Dimensions (ANSI 150)

The table only lists some common angle globe valve sizes for your reference. If you need other specifications or more detailed stainless steel angle globe valves, please contact us immediately.

Size (DN/Inch)	Face to Face	Open	Closed
15 / 1/2″	120 mm	200 mm	170 mm
25 / 1″	160 mm	260 mm	220 mm
50 / 2″	230 mm	350 mm	310 mm
100 / 4″	350 mm	520 mm	470 mm

*Custom dimensions available upon request.

Angle Globe Valve Application That Require High Reliability

Your operation depends on components that won’t fail under pressure. This stainless steel angle globe valve is trusted across industries where downtime isn’t an option:
