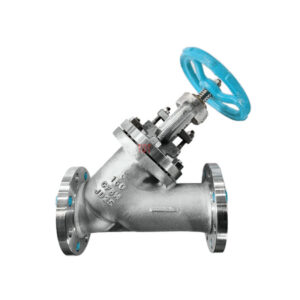

Y-Pattern Globe Valve

When your system calls for reliable throttling with lower pressure drop, the Y-Pattern Globe Valve is the smart choice.

TOT Valve, Designed for high-pressure, high-temperature service, this Y-type globe valve gives you smooth operation, longer service life, and better flow efficiency than standard globe valves.

Whether you’re working with steam, gas, or corrosive media, you’ll get precise control without compromising performance.

Minimum MOQ, but we guarantee that we can deliver tested and qualified products on time.

What Makes This Valve Different

Unlike conventional T-pattern globe valves, your Y-pattern valve features a seat and stem set at an angle (typically 45 degrees) giving you reduced turbulence and smoother flow. You’ll appreciate how this design lowers pressure losses while still offering tight shutoff and reliable modulation.

You can choose from forged carbon steel, stainless steel, or alloy steel bodies, and match the end connection—flanged, welded, or threaded—to your existing pipeline. From power plants to offshore platforms, this Y-type globe valve is built for the kind of systems you operate every day.

TOT Valve as a professional globe valve manufacturers and supplier in China. We will help you customize or select the appropriate Y-pattern globe valve according to your pressure, media and installation requirements.

Y-Pattern Globe Valve Features

Angled body design for improved flow characteristics and lower pressure drop
Linear control with tight shutoff performance
Full-range pressure classes from ANSI 150 to ANSI 2500 or PN16–PN420
Corrosion- and erosion-resistant trims (Stellite, Monel, or stainless steel)
Multiple operation methods: manual handwheel, gear, electric, or pneumatic
Live-loading and blowout-proof stem design for enhanced safety
Easy maintenance with renewable seat and backseat construction

Why You’ll Want to Use It

Get up to 30% better flow efficiency than standard globe valves
Maintain tight shutoff and throttling precision
Install it in horizontal or vertical pipelines
Handle steam, high-temp water, oil, gas, or chemicals with confidence
Reduce your long-term maintenance costs and unplanned shutdowns
Technical Specs That Fit Your System

Main Technical Parameters & Performance

Specification	Your Options
Size Range	1/2″ – 24″ (DN15 – DN600)
Pressure Class	ANSI 150 – 2500 / PN16
Temperature Range	-29°C to +560°C (depending on trim)
Body Material	A105, F304, F316, LF2, F22, etc.
Seat & Disc	Metal-to-metal / Stellite / Monel
End Connections	RF/RTJ Flange, SW, BW, or NPT Threaded
Operation	Manual / Gear / Pneumatic / Electric
Standards	API 602, ASME B16.34, BS 1873, EN 13709

Main Components and Materials

Component	Material Options
Body & Bonnet	WCB, Stainless Steel (CF8/CF8M/CF3M), Alloy Steel
Stem	410, 316, 17-4PH, F6a
Disc	SS + Stellite / SS + Monel
Seat Ring	Renewable / Integral seat in SS/Stellite
Packing	Graphite / PTFE / Live-loaded
Gasket	Spiral Wound SS+Graphite / PTFE

Y-Pattern Globe Valve Dimensions (ANSI 600)

The table only lists some common Y-pattern globe sizes for your reference. If you need other specifications or more detailed Y-pattern globe valves, please contact us immediately.
